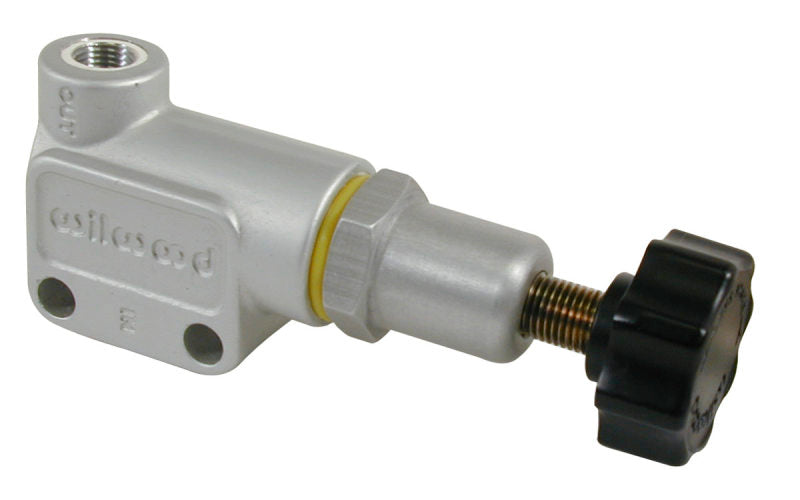

Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & Outlet

Name: Wilwood Proportioning Valve - Knob Adjust 3/8-24 IF Inlet & Outlet
Brand: Wilwood
SKU: WIL260-10922
Price: 53.29 USD
Availability: InStock

Brand:

Wilwood

SKU:

WIL260-10922

$53.29

$53.29 ~~$57.56~~

Sale

Shipping calculated at checkout.

Product variants

Quantity:

Fitment

Shipping and return

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Damages and issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Product details

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. This adjustment lets you fine tune the front to rear braking balance by proportionally decreasing the rear brake line pressure. Valves weigh only 5.2 ounces and have two .25â€ side mounting holes spaced 1.00â€ apart. This valve varies from our standard Knob Style Proportioning valve, as the in and out ports are 3/8-24 inverted flare seats and do not require tube nut adapters to directly install 3/16 tubing with inverted flare 3/8-24 nuts.
