Wilwood caliper DH4 1.50/.94 .19 rotor

Name: Wilwood caliper DH4 1.50/.94 .19 rotor
Brand: Wilwood
SKU: WIL120-8476
Price: 113.26 USD
Availability: OutOfStock

Brand:

Wilwood

SKU:

WIL120-8476

$113.26

$113.26 ~~$122.33~~

Sale

Shipping calculated at checkout.

Product variants

Quantity:

Fitment

Shipping and return

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Damages and issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Product details

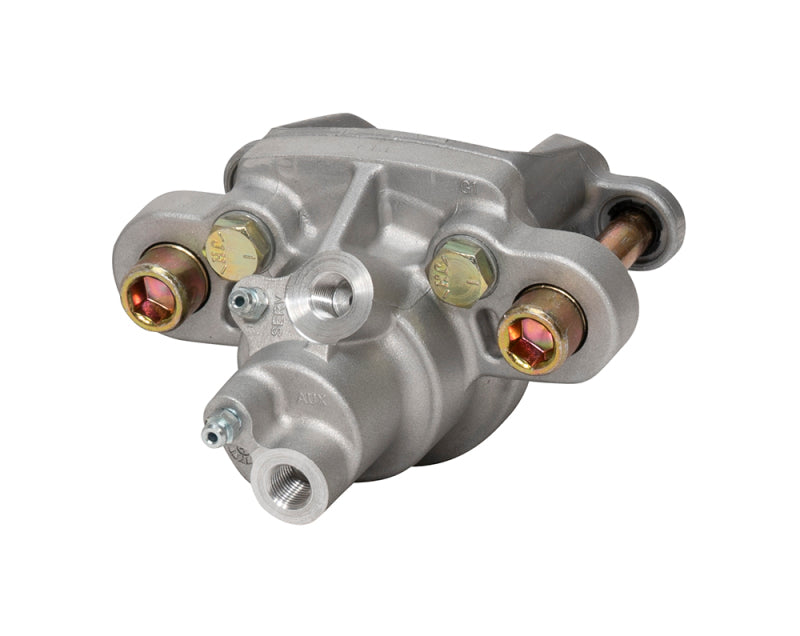

Wilwood’s DH4, Dual Hydraulic Calipers offers a step bore piston with a unique primary braking circuit and an additional isolated secondary hydraulic actuated parking brake. Primary piston bore is 1.50” inches, secondary is .94 “diameter and is further isolated with dual 10mm x 1.00 fluid inlets. Designed for rotors no larger 9.00” diameter and .19” width. DH4 caliper feature a floating, single piston design with 3.38” wide slide pin mounting. The DH4’s Low squeeze version use a modified seal design to maximize piston retraction in applications where low drag is paramount. Calipers are supplied without brackets. Additional steel brackets are available.
