Subaru MAC 3 Port Boost Control Solenoid Mount

This MAC 3 Port Boost Control Solenoid Mount is 3D printed with High-Quality Carbon Fiber Nylon filament which is known for its extreme strength, chemical, and temperature resistance. This means it will have no problem performing its job even in the hottest engine bays. For turbo Subarus with the composite intake manifolds, we have a mount that relocates your factory map sensor to where the OEM Boost controller mounts to utilize the larger area to mount the MAC 3 Port boost control solenoid. All mounts include mounting hardware and use brass heat-set threaded inserts that are found in OEM applications to keep threads in plastic strong and reusable.

Features

• Designed and Made in the USA with High-Quality Carbon Fiber Nylon
• Stainless Steel Hardware
• Brass Heat Set Inserts
• Light Weight
• Chemical and High-Temperature Resistant
• Quality Appearance and Construction
• Affordable Price

Fitment

For Subaru Composite Intake Manifold MAC 3 Port Boost Control Solenoid Mount

2008 - 2014 Subaru Impreza WRX

2009 - 2013 Subaru Forester XT

2005 - 2009 Subaru Legacy GT / Outback XT

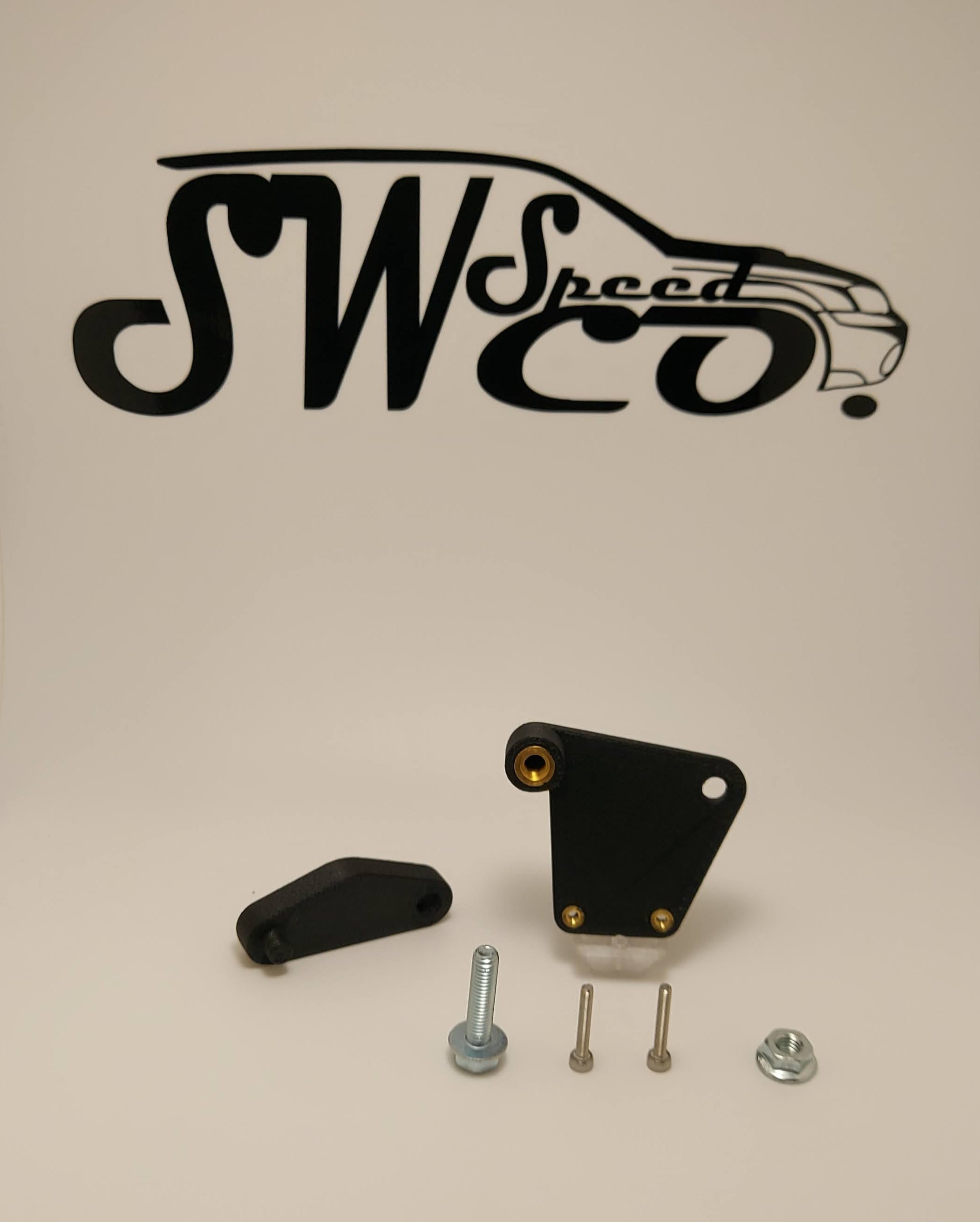

Kit Includes

Mount Only

Subaru Composite Intake Manifold Mount and MAP Sensor Relocation

2x M3 x 0.5 20mm Stainless Steel Socket Head Screws

1x M6 x 1.0 25mm Hex head bolt

1x M6 x 1.0 Flanged Hex Nut

1X 5 inch 5/32" Vacuum Hose

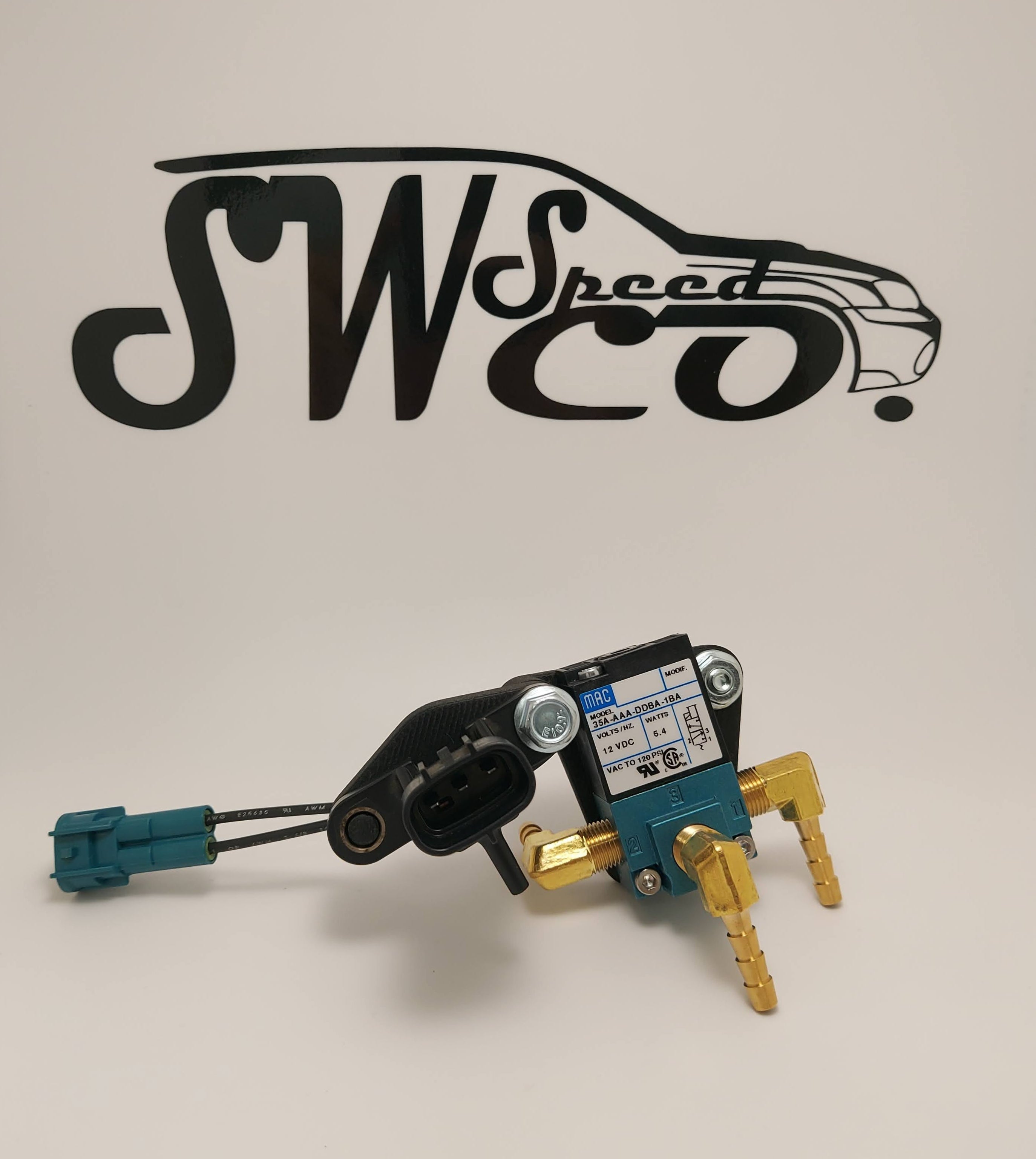

Mount With MAC 35A 3 Port EBCS

Subaru Composite Intake Manifold Mount and MAP Sensor Relocation

1X Genuine MAC 35A 3 Port Boost Control Solenoid with Plug and Play Subaru EBCS Connector

3X Brass 90 Elbow 1/8" NPT x 3/16" Barb Fitting

2x M3 x 0.5 20mm Stainless Steel Socket Head Screws

1x M6 x 1.0 25mm Hex head bolt

1x M6 x 1.0 Flanged Hex Nut

1X 5 inch 5/32" Vacuum Hose
