SPL Parts Rear Toe Arms w/Eccentric Lockout - 08-21 WRX & STi, 13-24 BRZ / FR-S / 86 & GR86, 09-18 FXT

In Stock

SPL Parts Rear Toe Arms w/Eccentric Lockout - 08-21 WRX & STi, 13-24 BRZ / FR-S / 86 & GR86, 09-18 FXT

Name: SPL Parts Rear Toe Arms w/Eccentric Lockout - 08-21 WRX & STi, 13-24 BRZ / FR-S / 86 & GR86, 09-18 FXT
Brand: SPL Parts
SKU: SPPSPL RTAEL FRS
Price: 467.81 USD
Availability: InStock

Brand:

SPL Parts

SKU:

SPPSPL RTAEL FRS

$467.81

$467.81 ~~$499.00~~

Sale

Shipping calculated at checkout.

Product variants

Quantity:

Fitment

Shipping and return

We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase.

Damages and issues

Please inspect your order upon reception and contact us immediately if the item is defective, damaged or if you receive the wrong item, so that we can evaluate the issue and make it right.

Product details

SPL Parts adjustable Rear Toe Arms (RTA) increase stability and response by eliminating bushing deflection while also offering a wide range of toe adjustment. Lowered BRZs, WRXs, and 86s need the adjustment range for correcting rear toe to ensure proper tire wear and handling. Correcting the static toe angle and eliminating the toe change that occurs due to bushing deflection makes a huge improvement to the overall driving experience of the car. Sharper turn-in, improved braking stability, and predictable handling from corner entry to corner exit.

The SPL rear toe arms feature 360° clamps instead of jam nuts to make setting the toe angle significantly easier. Simply loosen the two 1/4"-20 titanium screws and turn the center arm to adjust the length. Tightening the screws locks down the arm and won't change your toe setting.

OEM eccentric bolts are known to slip during hard cornering, altering your alignment settings and possibly ruining your track day. That's why we've paired the SPL eccentric lockouts and rear adjustable toe arm as a complete kit. The eccentric lockout kit replaces the OEM eccentrics and also allows the toe arms to be unbolted and bolted back on the car while maintaining alignment settings, if needed.

Benefits

Lightweight: 2.63 lbs (1.19 kg) per Arm (18% Lighter than OEM)
Large Toe Adjustability Range
Eliminates Bushing Deflection and Toe Change due to Deflection
Greatly Improves Stability and Driving Feel
Replaces Slip-prone OEM Eccentrics, Locks Down Alignment
Easier, On-Car Adjustment + No Jam Nuts
Self-Cleaning, US Made, PTFE-Lined FK Bearings

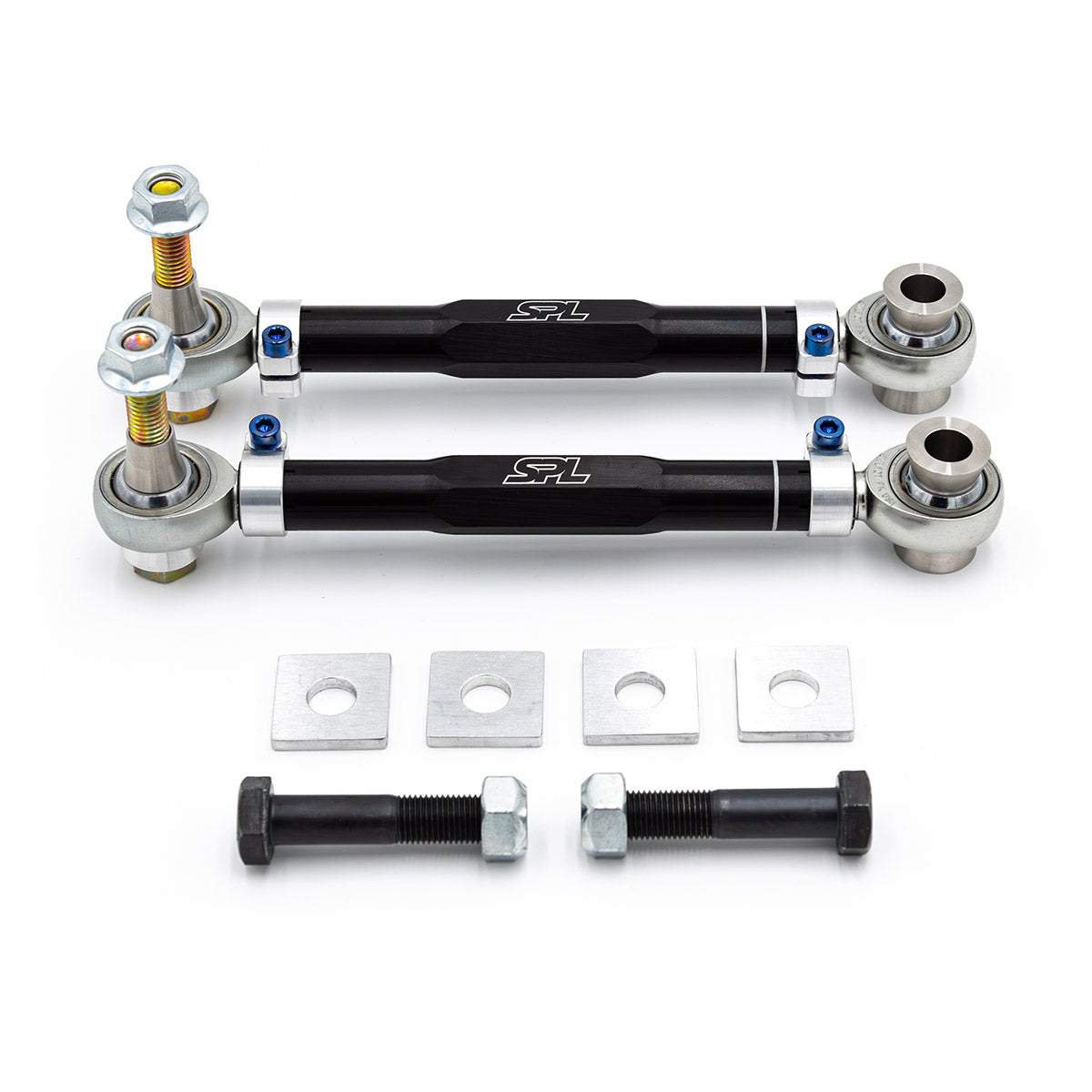

Materials

Hollow 6061-T6 Aluminum Arms (Anodized Black)
6061-T6 Aluminum Spacers, 360º Clamps, and Lockout Plates
304 Stainless Steel Insert Spacers
Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

Easy, On-Car Adjustments

Simply loosen the 1/4"-20 titanium hardware and turn the arm to achieve the desired amount of camber. Lastly, tighten the 1/4"-20 titanium hardware to lock it in. No more wandering alignment specs as you try to hold one end and tighten the other.

Suitable for all uses, from daily driver to race car.
