Radium Surge Tank Spare Tire Carrier Mount (Universal Fitment) – Fits Radium 20-0960 Surge Tank & 60mm Fuel Filter

Mount your Radium Engineering 20-0960 surge tank cleanly and securely with this universal spare tire carrier mount, 3D printed in high-quality PA6 Carbon Fiber Nylon. Built for extreme strength and resistance to chemicals and high heat, this fuel system mount is engineered to perform in demanding automotive environments — from daily-driven builds to track cars running E85.

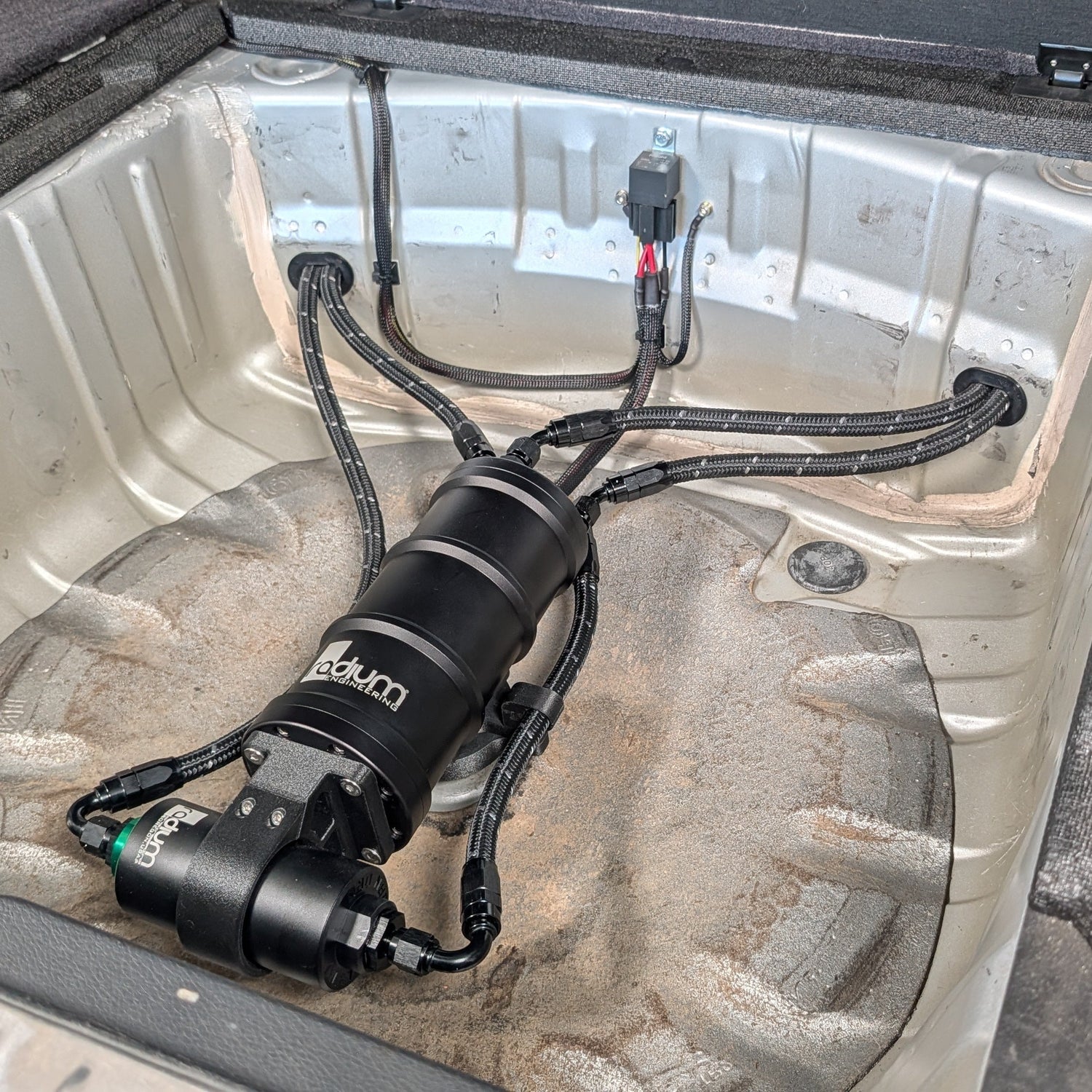

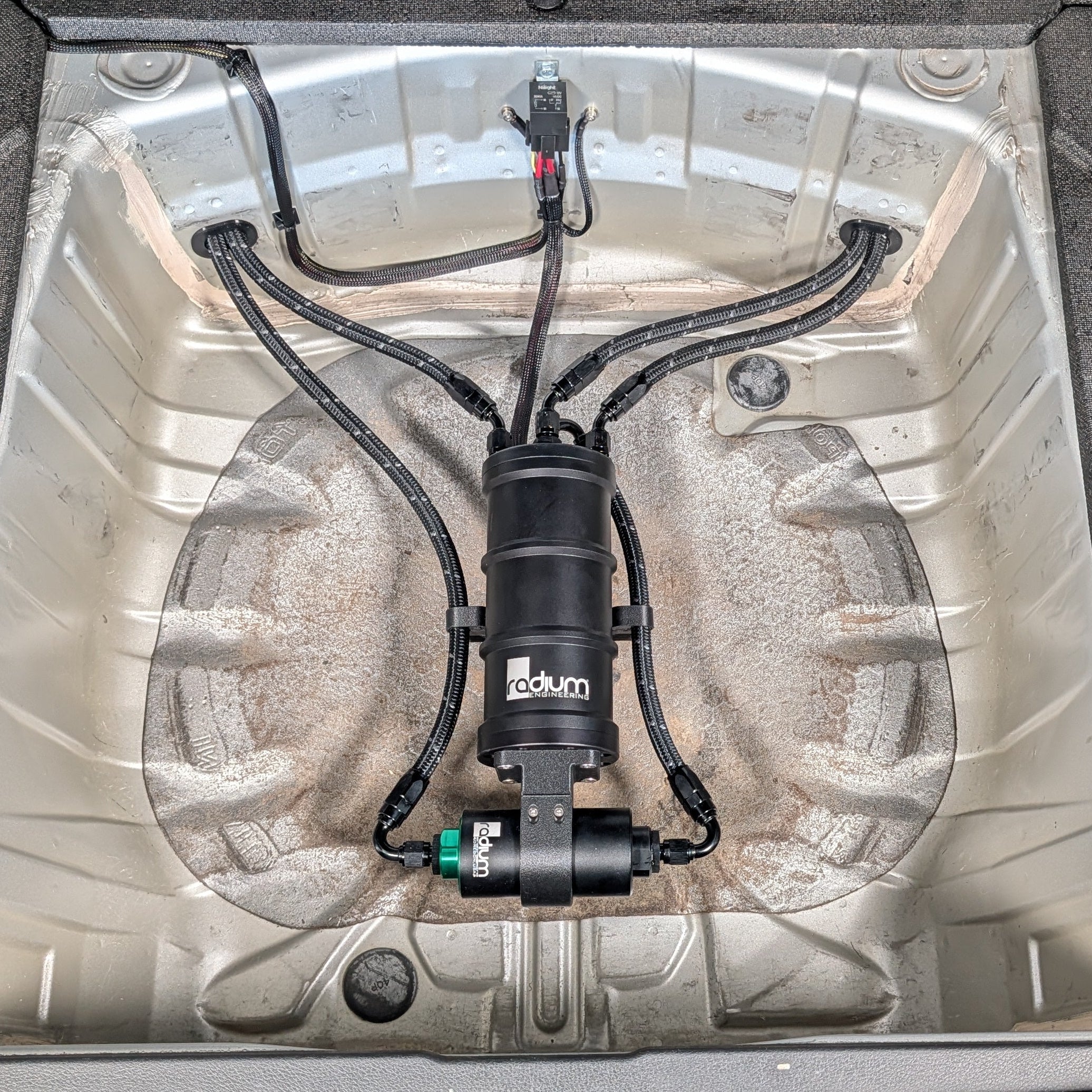

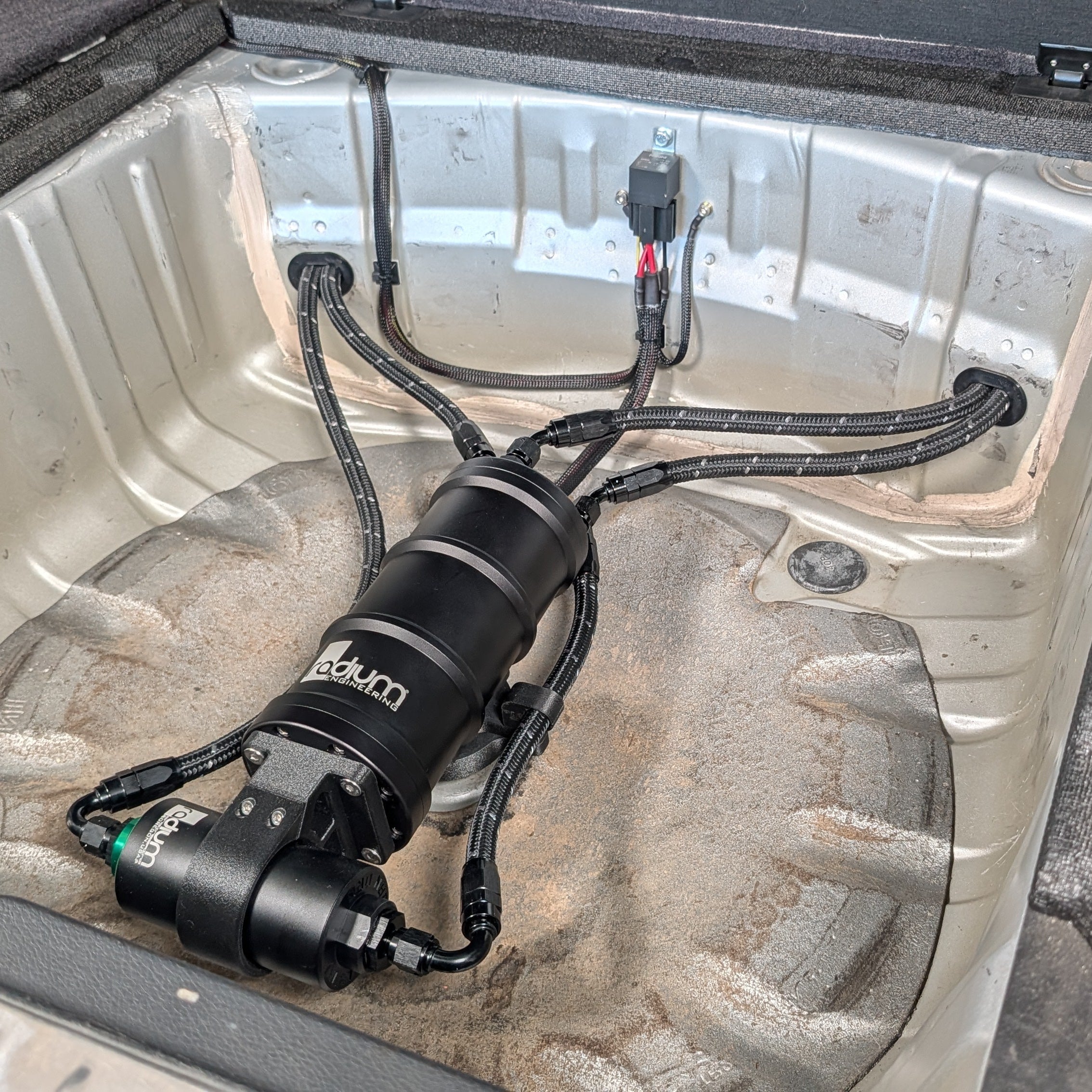

The Surge Tank Mount uses a single M8-1.25 mounting bolt, the same fastener size found in most vehicles' spare tire wells, allowing horizontal mounting of the Radium 20-0960 surge tank for a low-profile, out-of-the-way install in your spare tire carrier. The included Fuel Filter Mount bolts directly to the surge tank's bottom mounting holes and accepts any standard 60mm fuel filter.

Each kit ships complete with TPU grommets for routing fuel lines through the spare tire carrier wall, plus Ghost Interlock hose mounts to keep your fuel lines organized and secure.

*Before ordering, measure your fuel line outer diameter to select the correctly sized Ghost Interlock Hose Mounts and grommets for your build.

Features

• Designed and manufactured in the USA using high-quality PA6 Carbon Fiber Nylon
• Stainless steel hardware included
• Chemical-resistant and high-temperature-resistant construction
• Precision-engineered fit and clean appearance
• Compatible with universal spare tire carrier applications


Fitment

• Designed to fit Radium Engineering 20-0960 Surge Tanks
• Fuel Filter Mount accepts any standard 60mm fuel filter
• Universal spare tire well fitment via M8-1.25 center mounting bolt (the standard spare tire fastener size on most vehicles)
• Need a different bolt size? Email swspeedco@gmail.com for a custom-modified part

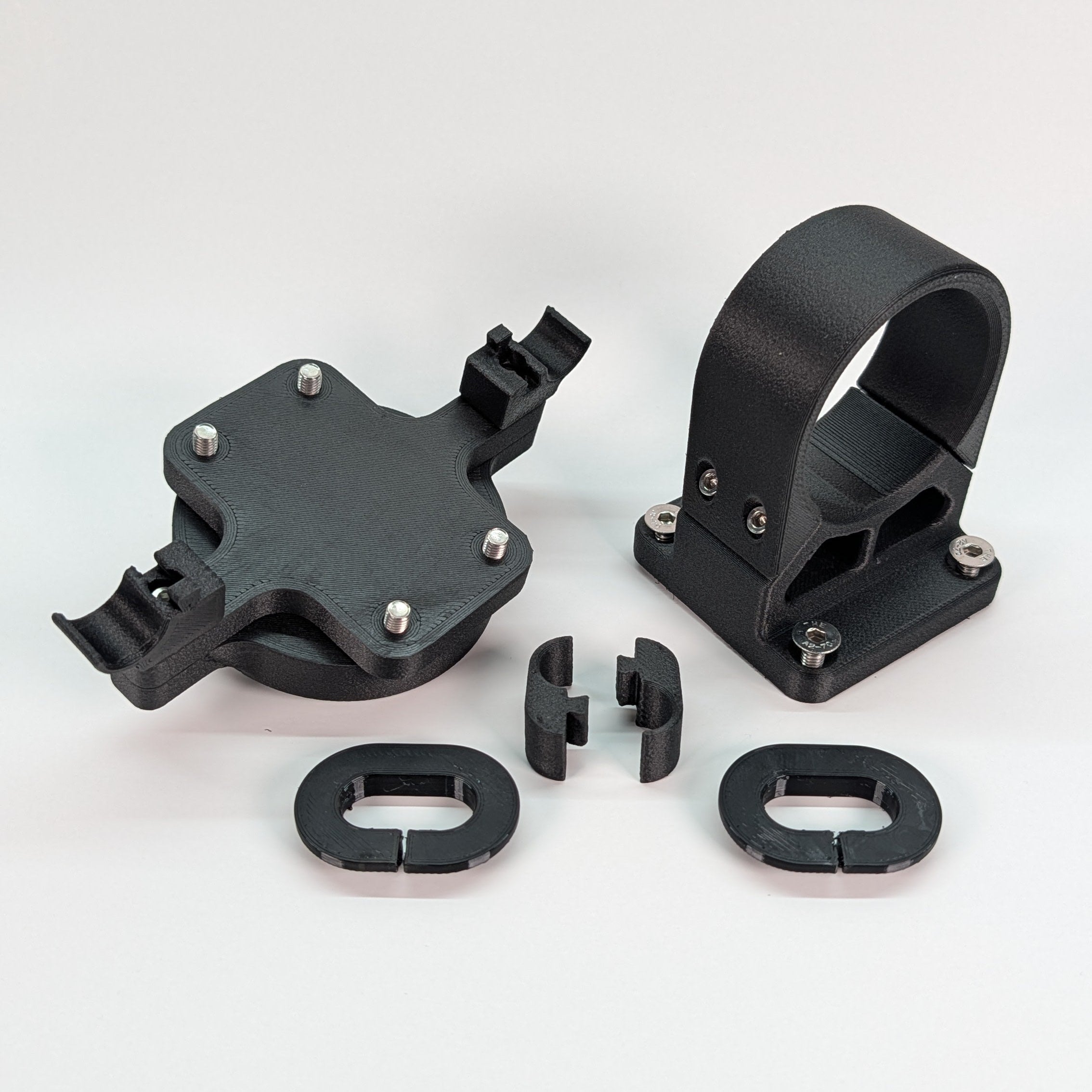

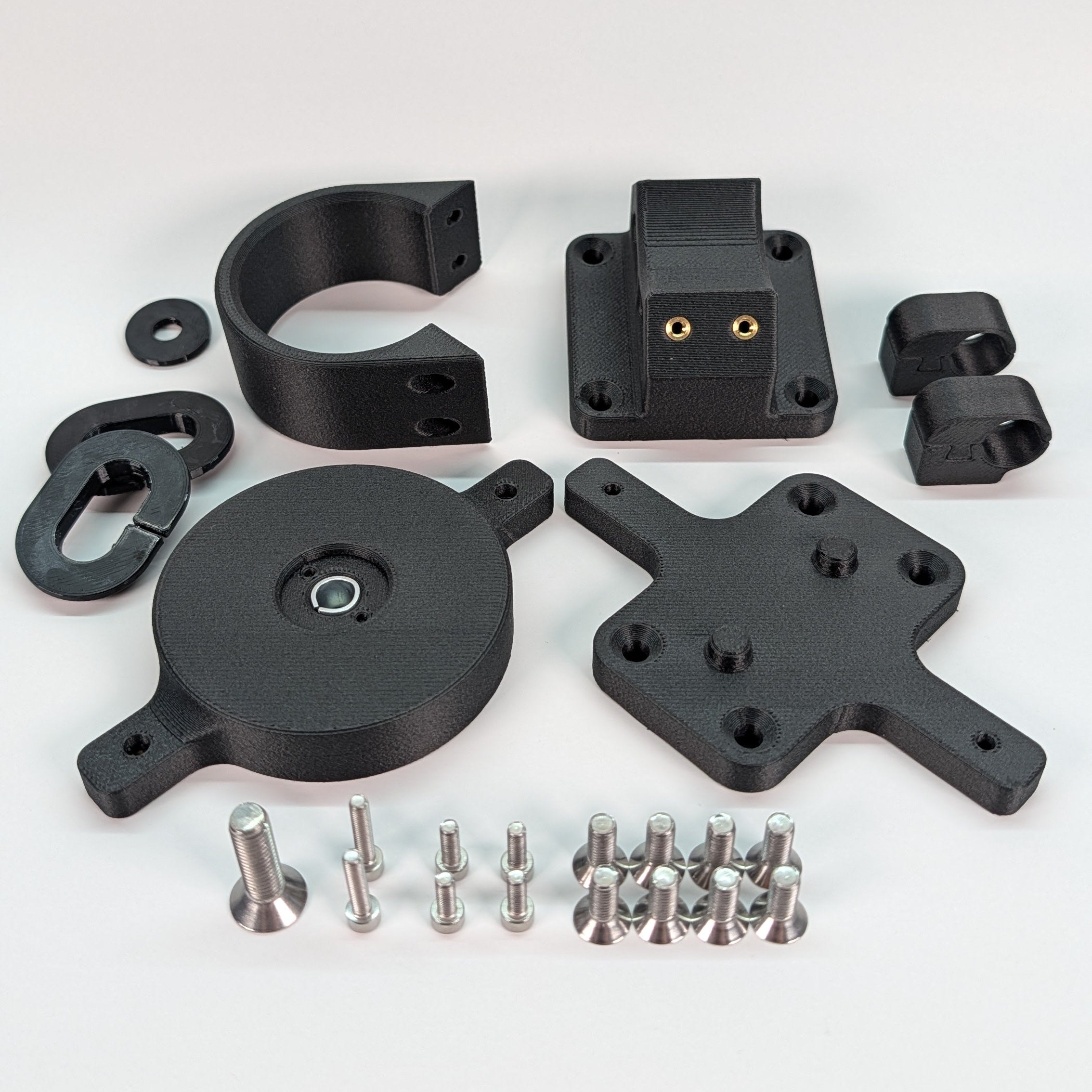

Kit Includes

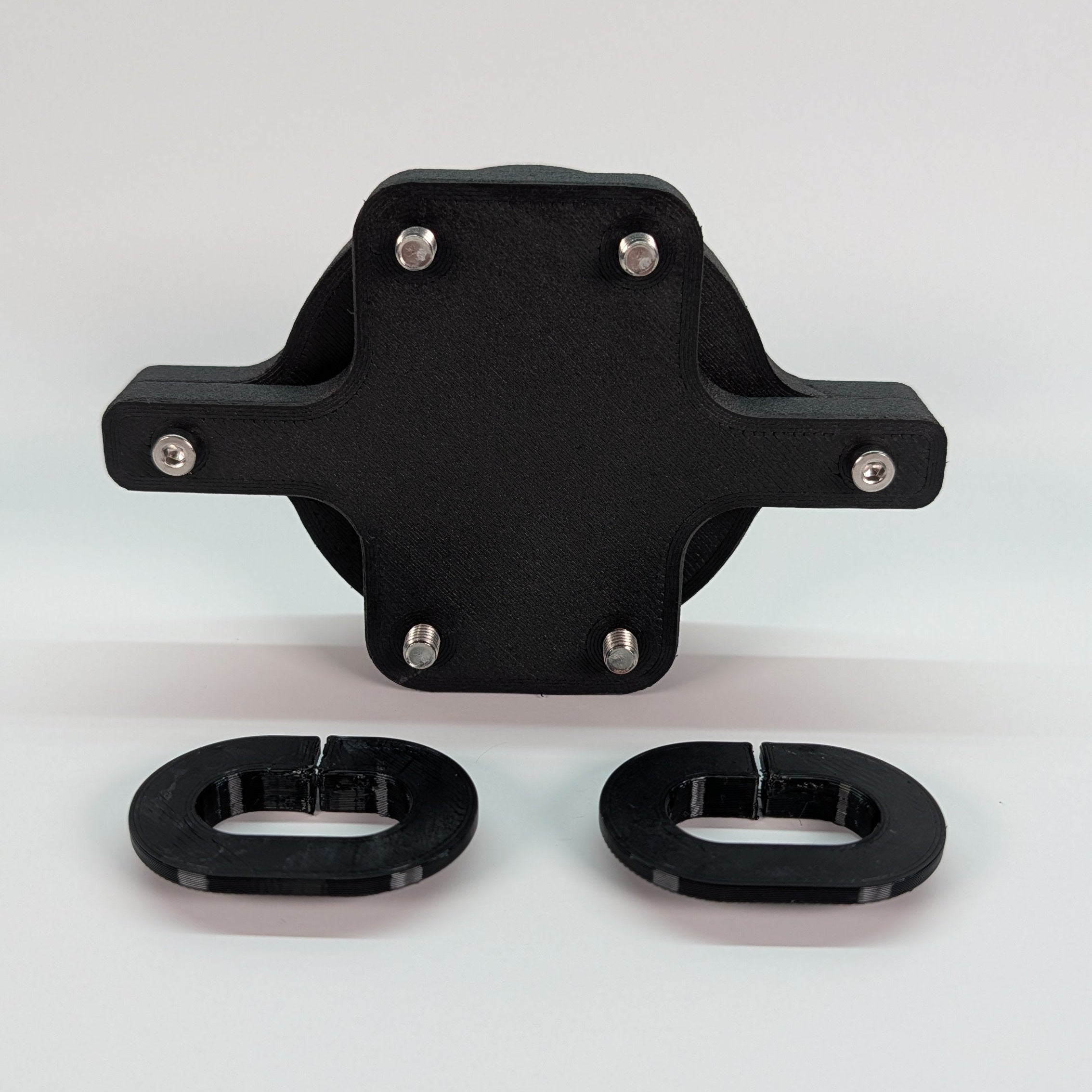

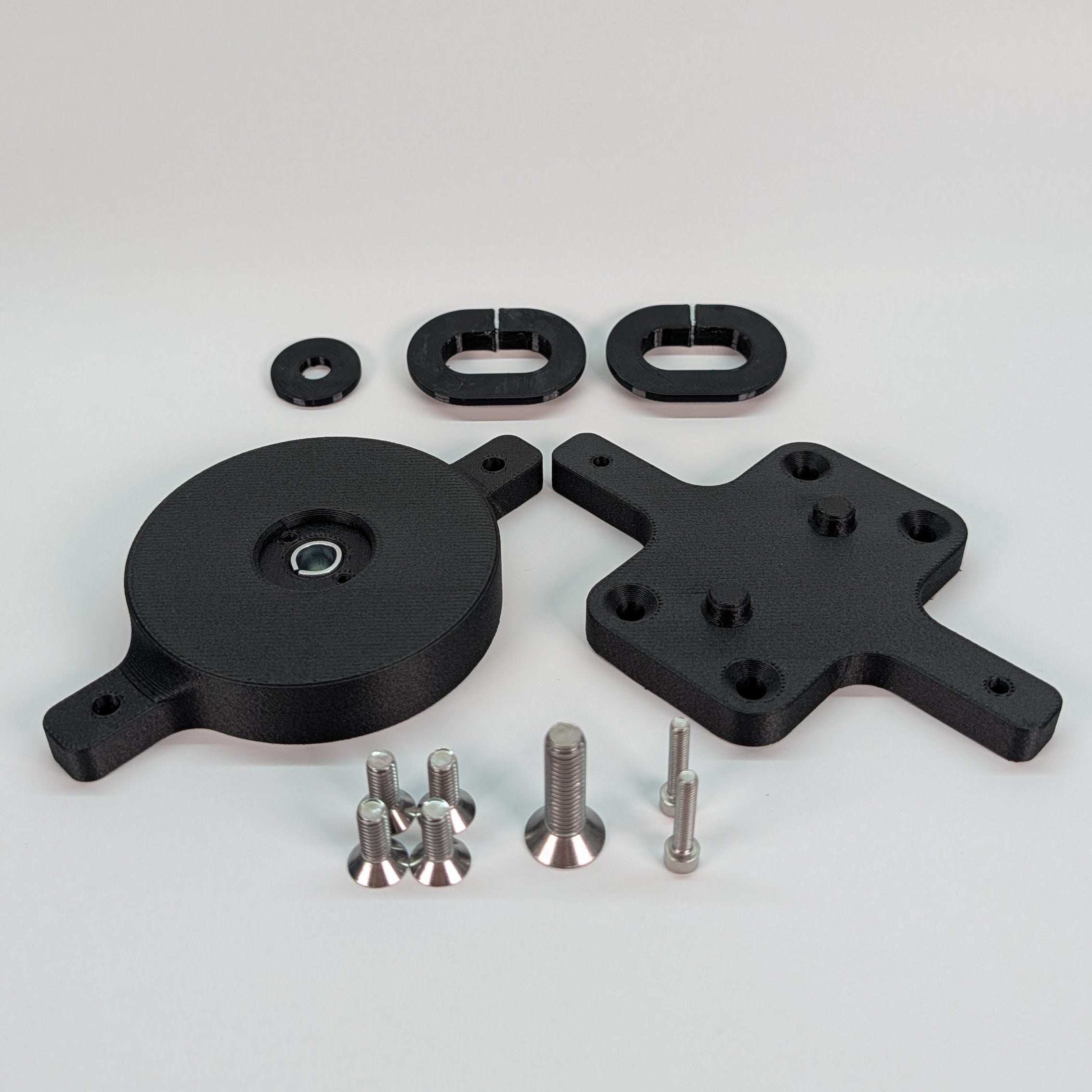

Surge Tank Mount:

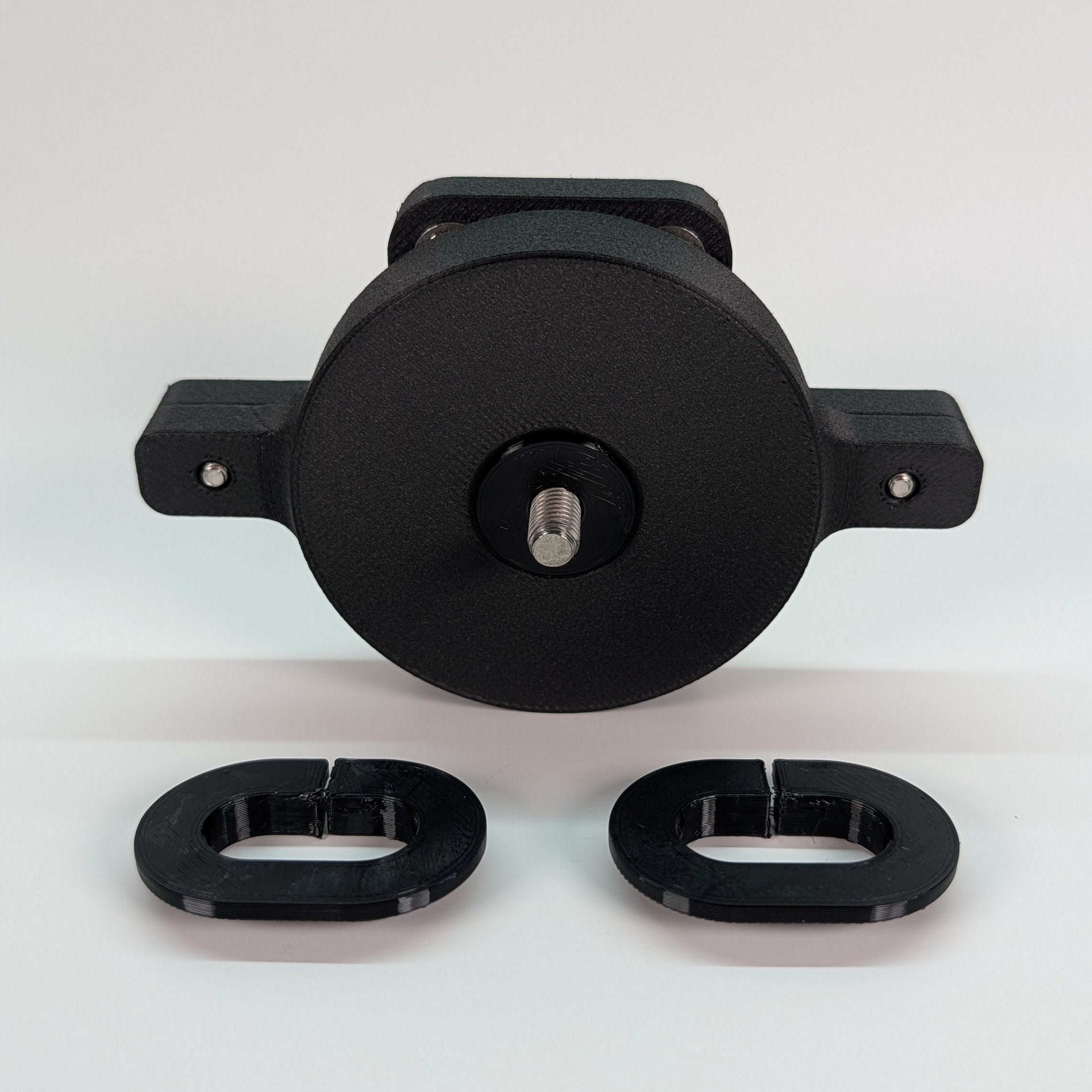

• 1x 3D printed M8 spare tire carrier adapter
• 1x 3D printed Radium Surge Tank (20-0960) mount
• 2x 3D printed TPU fuel line grommets
• 1x 3D printed TPU mounting washer
• 2x M4-0.7 x 20mm socket head screws
• 1x M8-1.25 x 30mm flat head bolt
• 4x M6-1.00 x 16mm flat head bolts

Fuel Filter Mount:

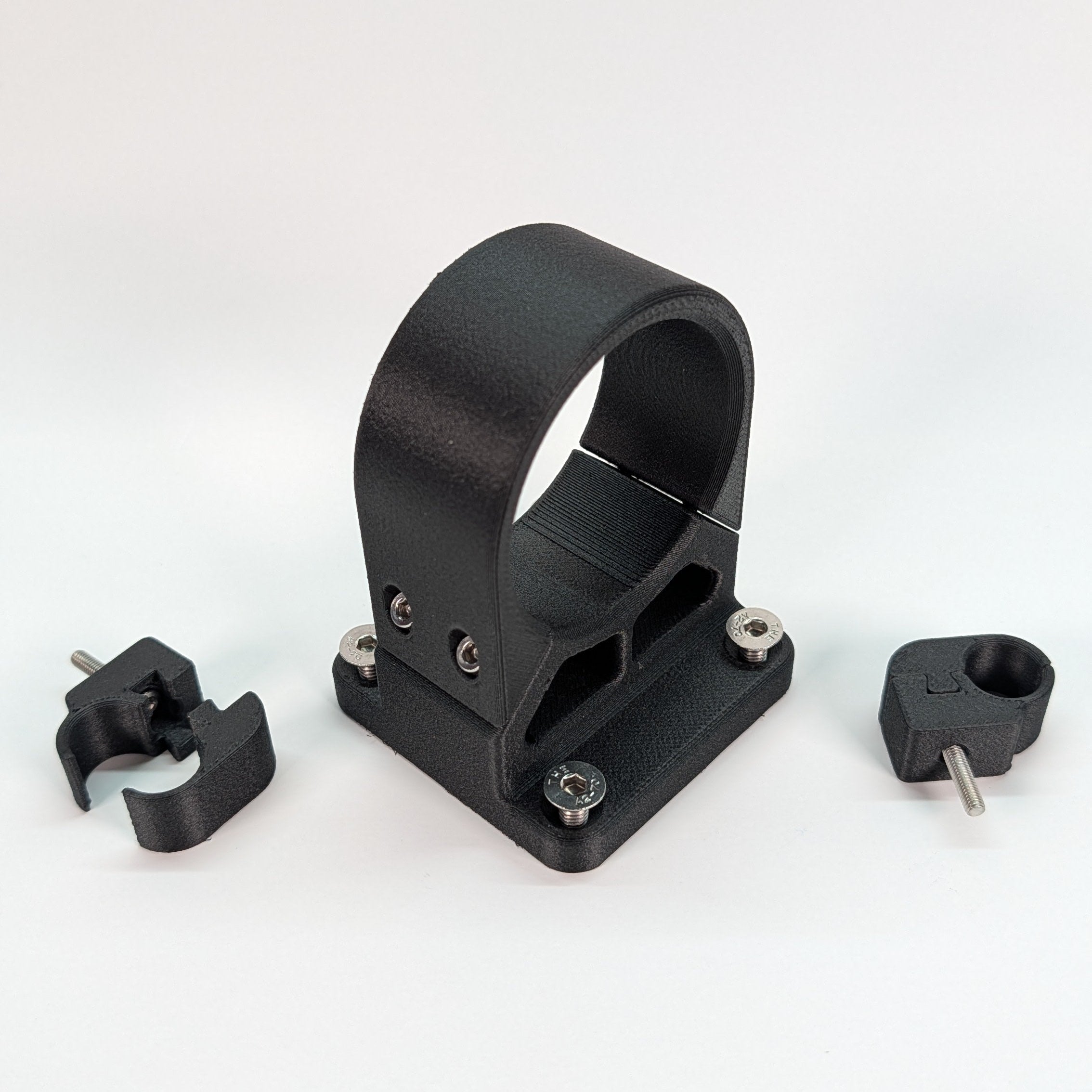

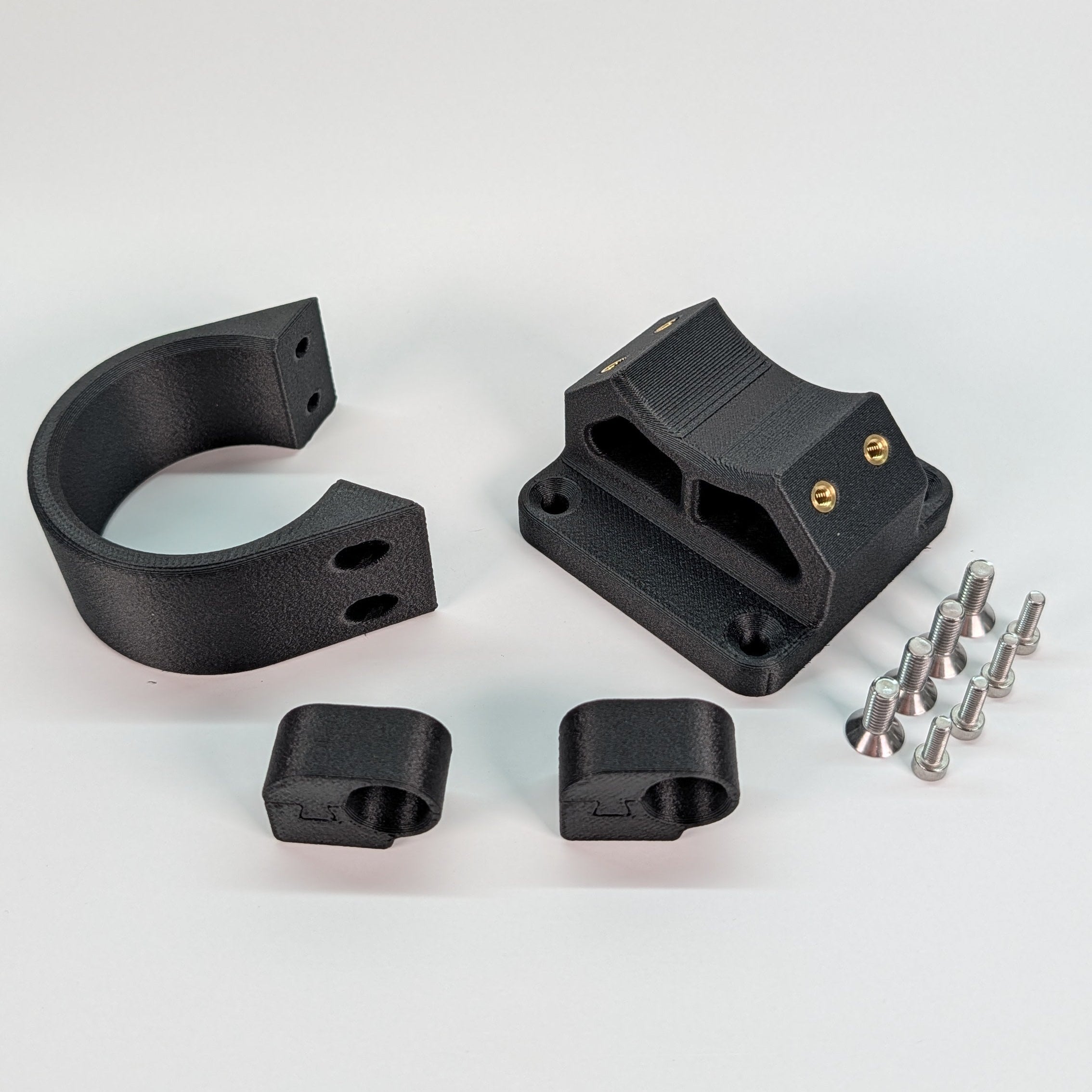

• 1x 3D printed 60mm fuel filter mount
• 4x M6-1.00 x 16mm flat head bolts
• 4x M4-0.7 x 8mm flat head bolts
• 2x Ghost Interlock hose mounts
