Perrin Brake Master Cylinder Brace - 02-07 Subaru WRX & STi, 04-07 FXT

Reduce Flex

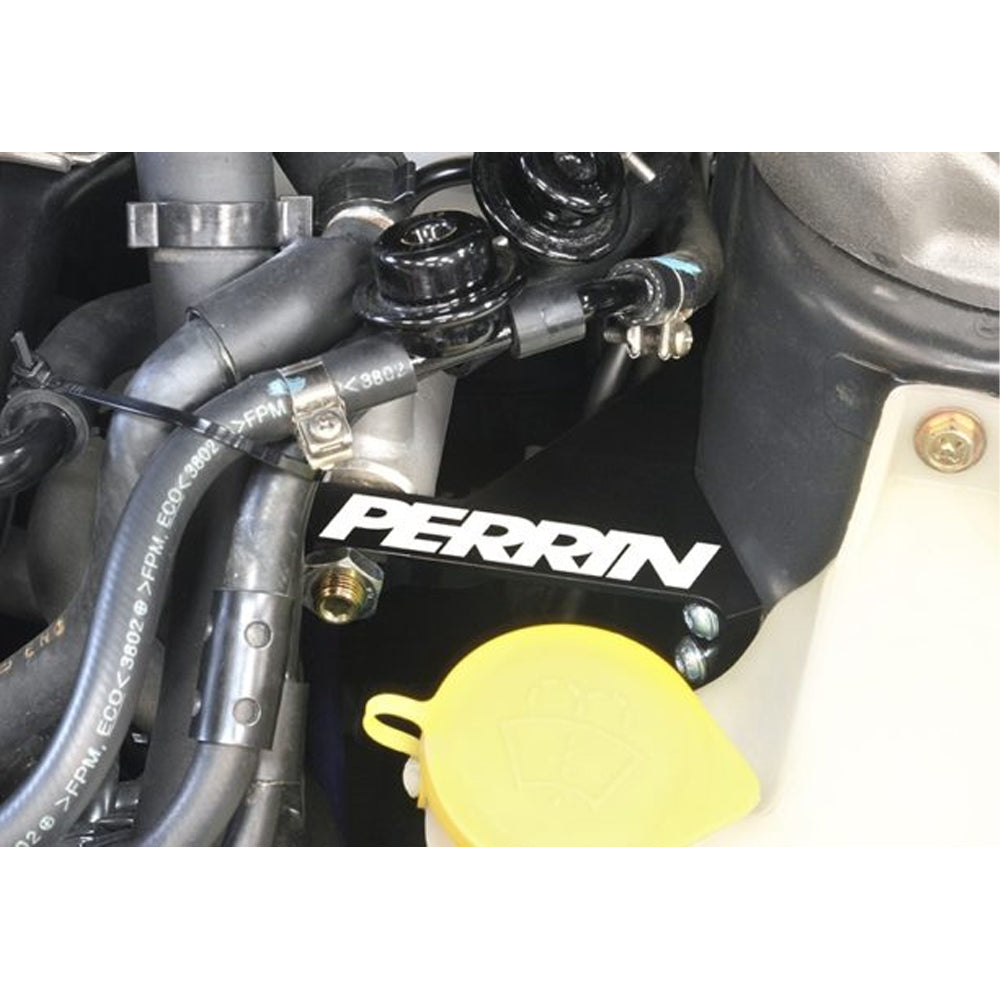

Your brake pedal is connected to the thin sheet metal firewall which flexes as you apply the brakes. The firewall is not stiff enough to deal with the constant and repeated forces while applying the brakes. The PERRIN Master Cylinder Brace creates a bridge between the firewall, master cylinder, and shock tower, significantly reducing flex in the firewall while braking.

Stiffen Brake Pedal Feel

The PERRIN Master Cylinder Brace significantly reduces flex at the firewall, so you get solid brake pedal feel with every application of the brakes. This is very noticeable while under heavy braking and even slowing for a stop sign. The difference can immediately be felt after installation.

Construction

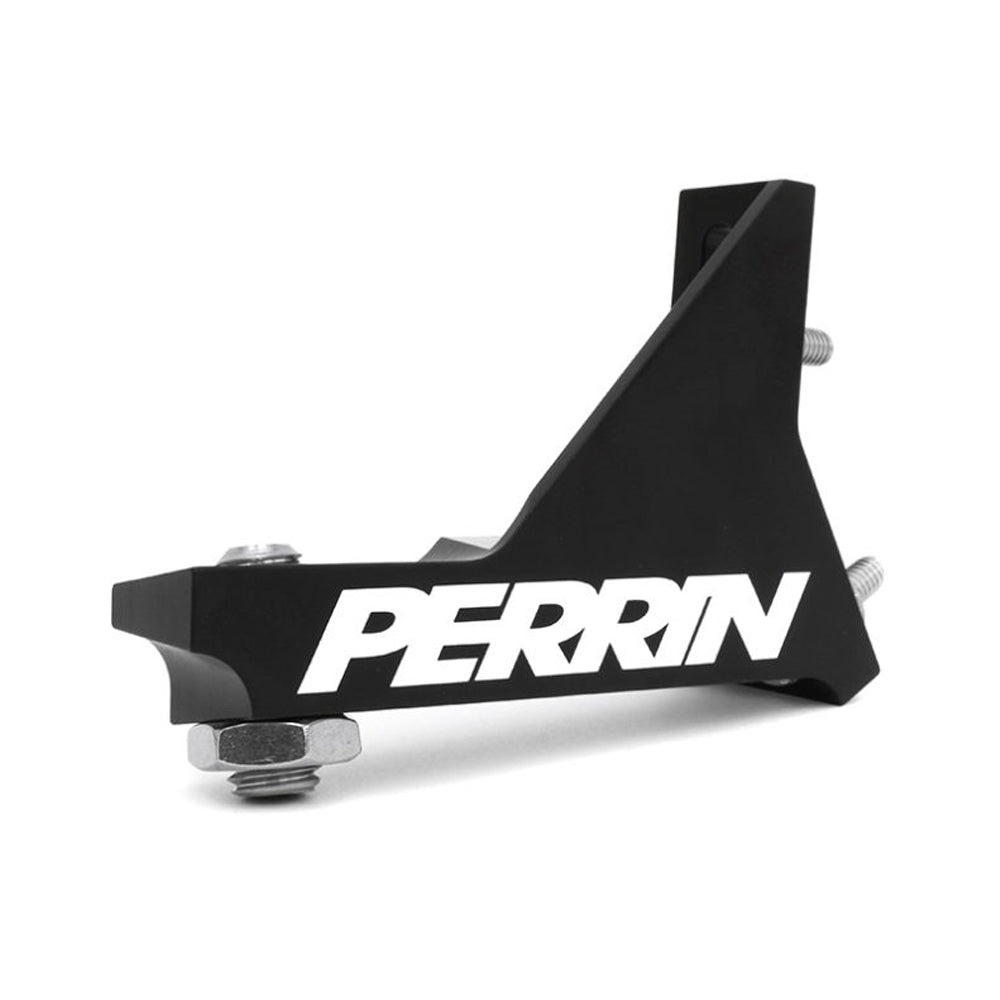

When possible we try to design Master Cylinder Braces in one piece to improve rigidity. The PERRIN Master Cylinder Brace for the 2002-2007 WRX & 2004-2007 STI are CNC machined from a large piece of 6061-T6 billet aluminum for extreme stiffness. With stainless steel hardware and an anodized finish, the PERRIN Master Cylinder Brace will look great and last the life of the car, even in the harshest conditions.

Design

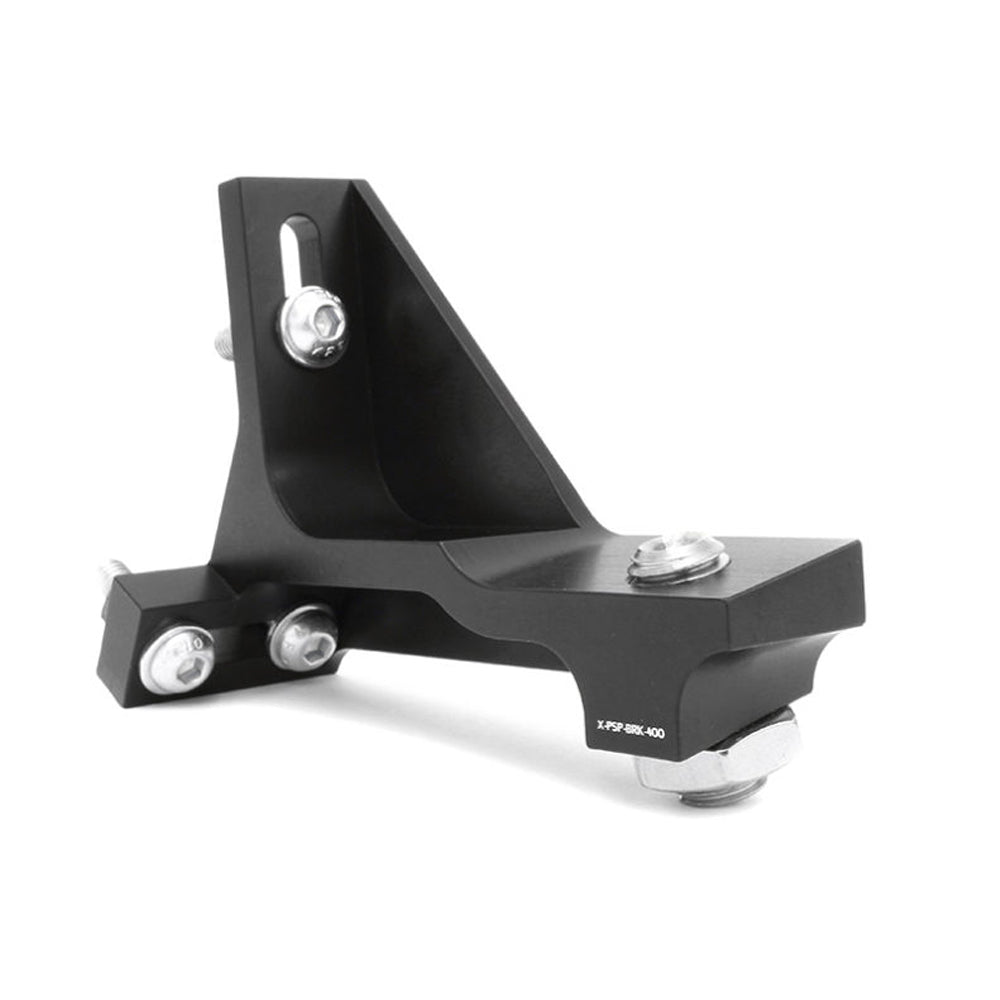

The PERRIN Master Cylinder Brace is design to attach strategically to multiple points on the shock tower. This helps reduce flex in the brake master cylider by creating a solid connection between it and the chassis. To further aid in stiffening or tightening up this connection, included is an adjustable screw that allows tension to be preloaded on the master cylinder.

Please note, THIS MAY FIT SOME 93-01 MODELS, contact Support@TurnInConcepts.com for more info.

Only compatible with left-hand drive models.

Installation Instructions - Click Here!
